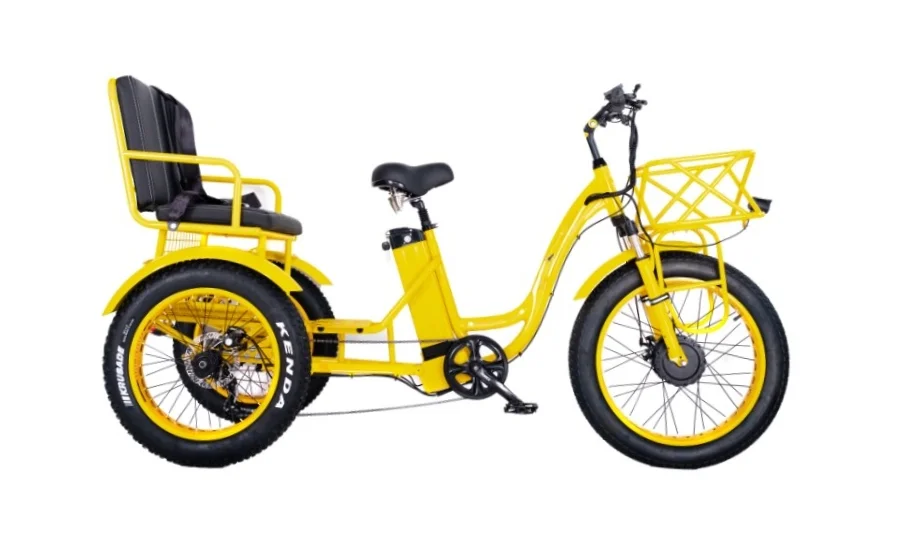

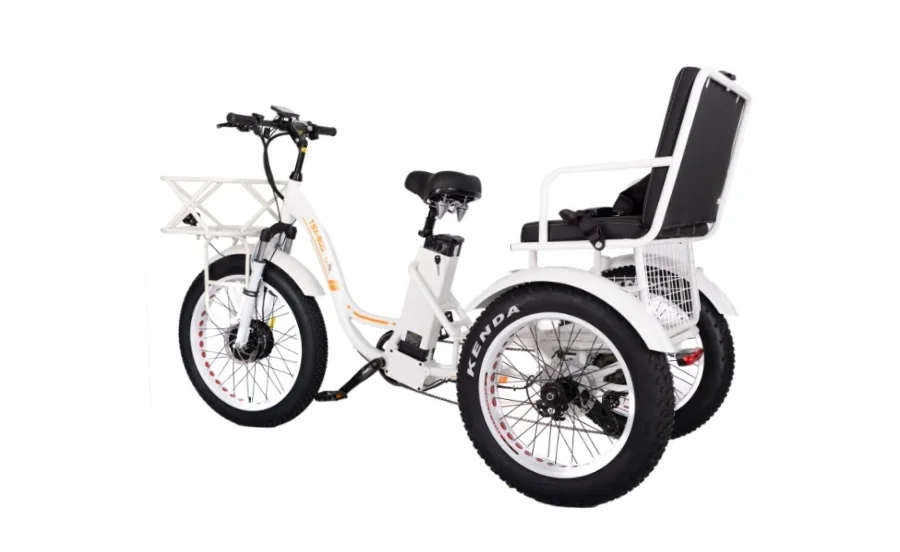

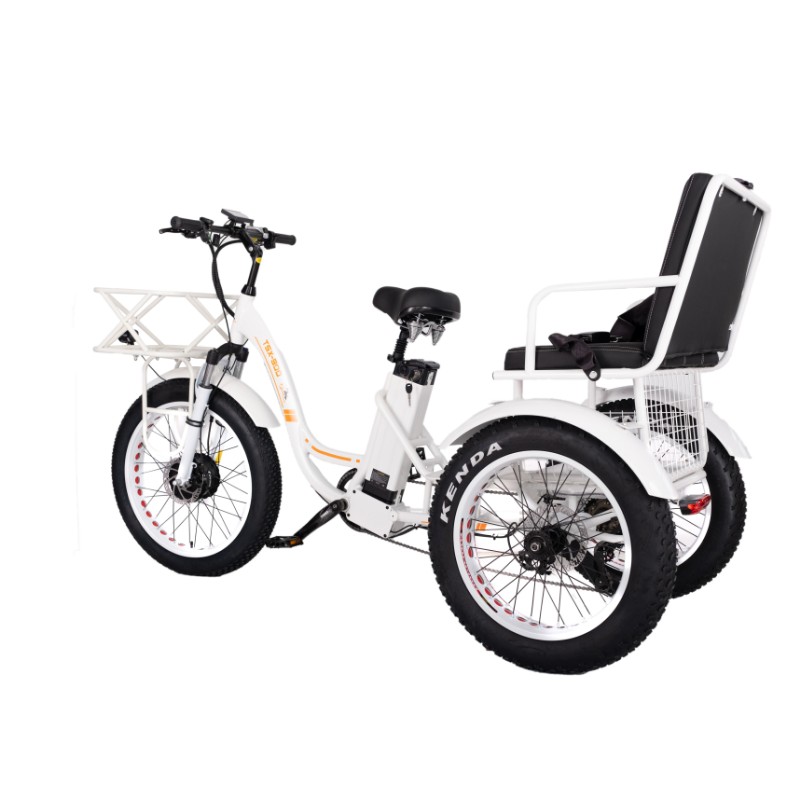

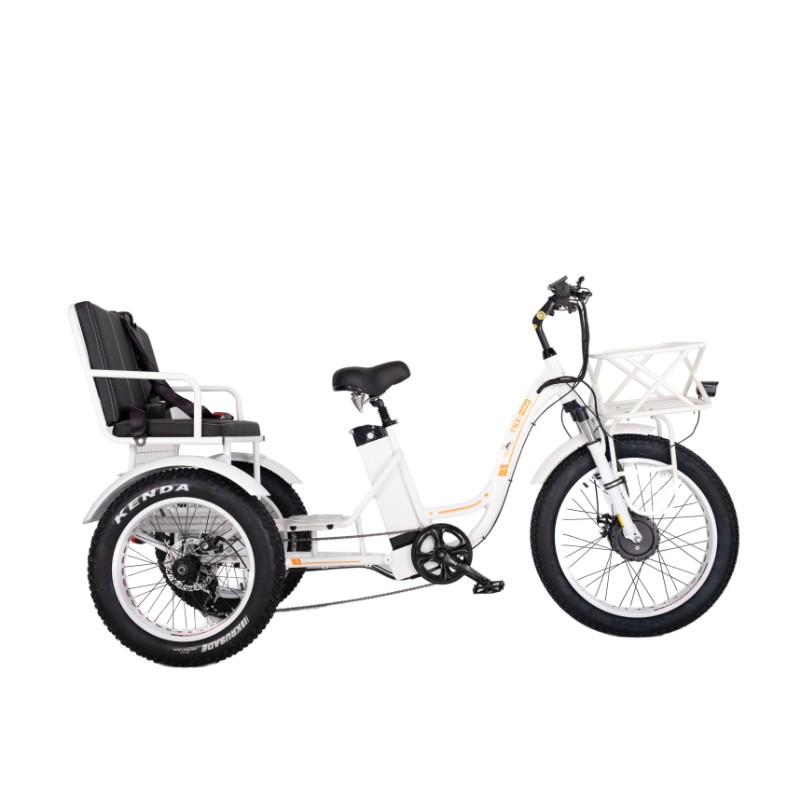

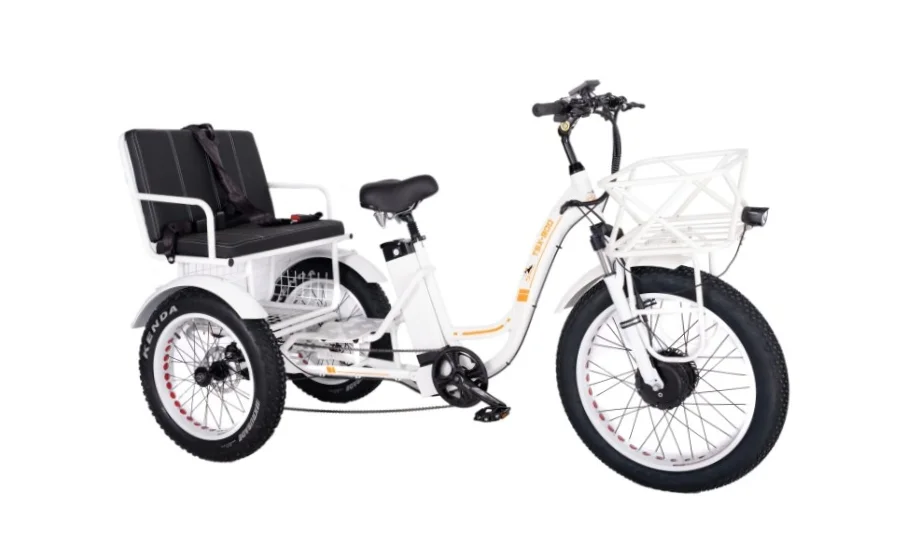

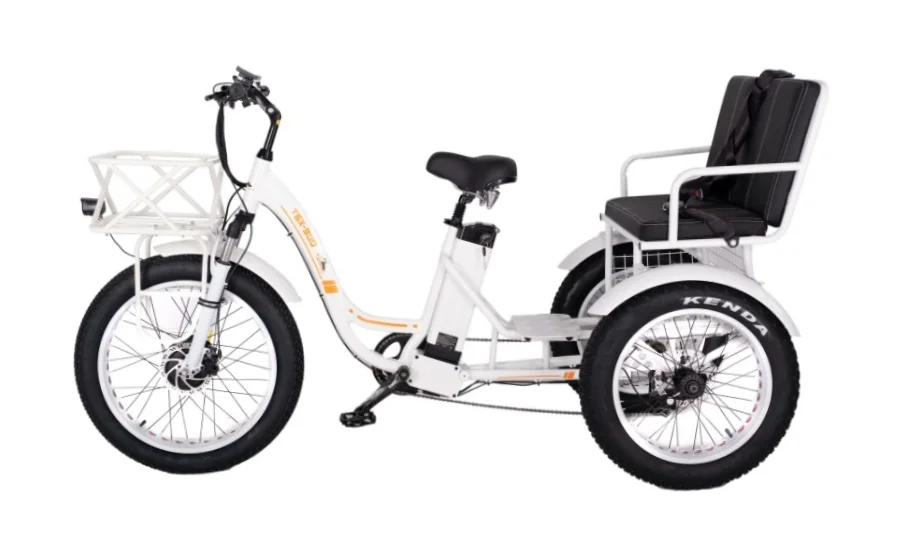

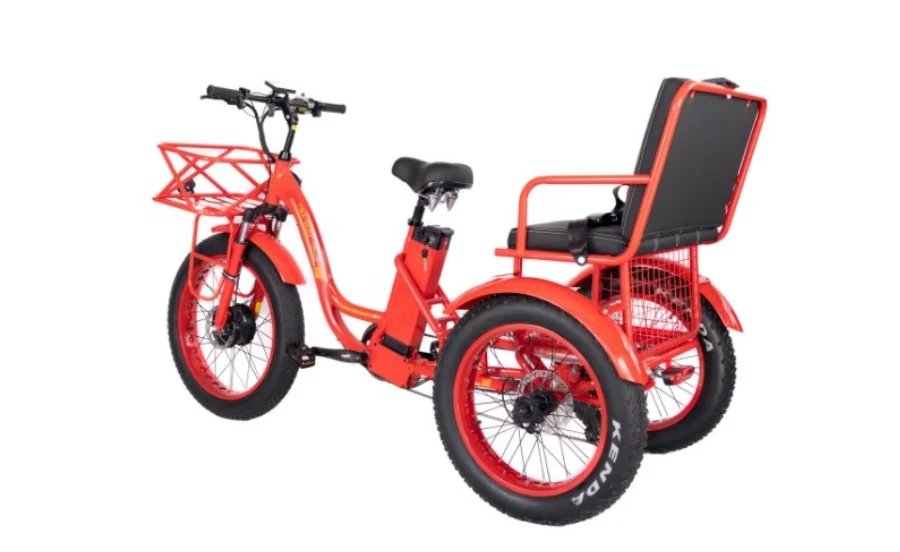

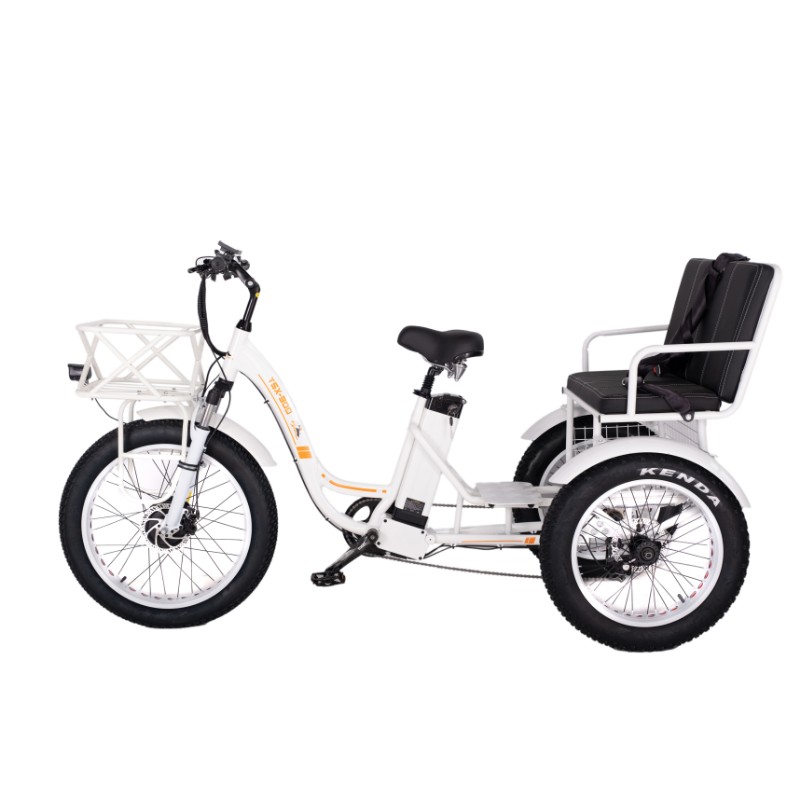

OVERVIEW – Rickshaw Fat Tire Electric Tricycle With Rear Seat

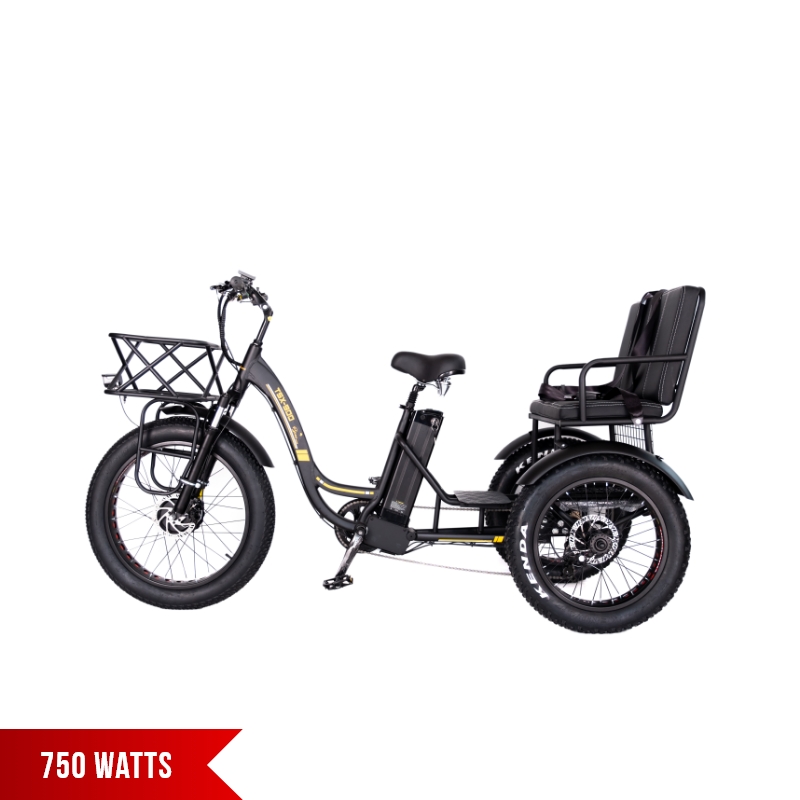

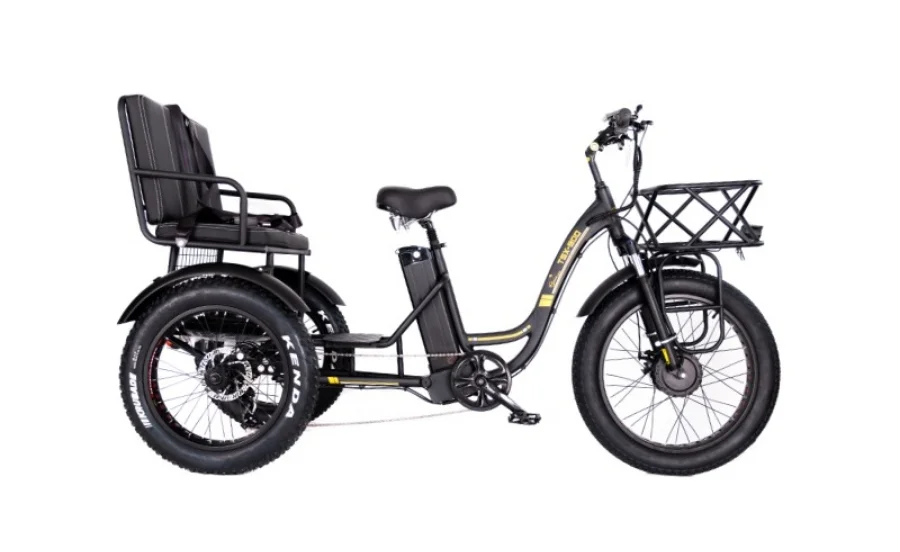

TSX-900 Rickshaw Tricycle HEAVY DUTY FAT TIRE 750W 48V 21AH Samsung Battery

Our newest tricycle model for the 2023 release. Perfect for music festivals such as Burning Man, Coachella and many more.

This new edition has added battery power, storage as well as additional seating/bench for another passenger.

This model has 2x 20″ tires in the rear and 1x 24” tire in the front. Fat Tires offer exceptional traction and maneuverability through the toughest terrain, even while battling sand and gravel. Pair all of these features with our extremely powerful 750-watt motor and Samsung battery, there is nothing stopping your ride. This heavy-duty style tricycle is great for any height rider.

COLOR OPTIONS:

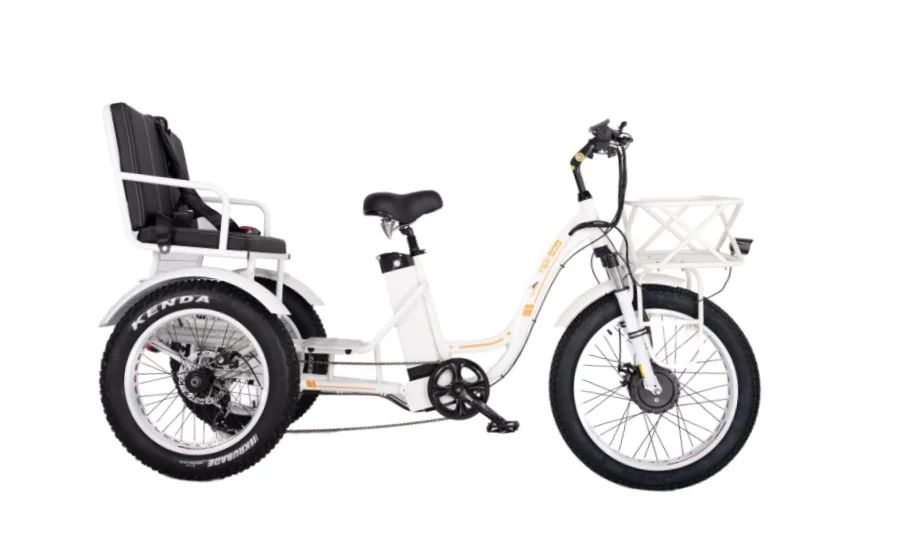

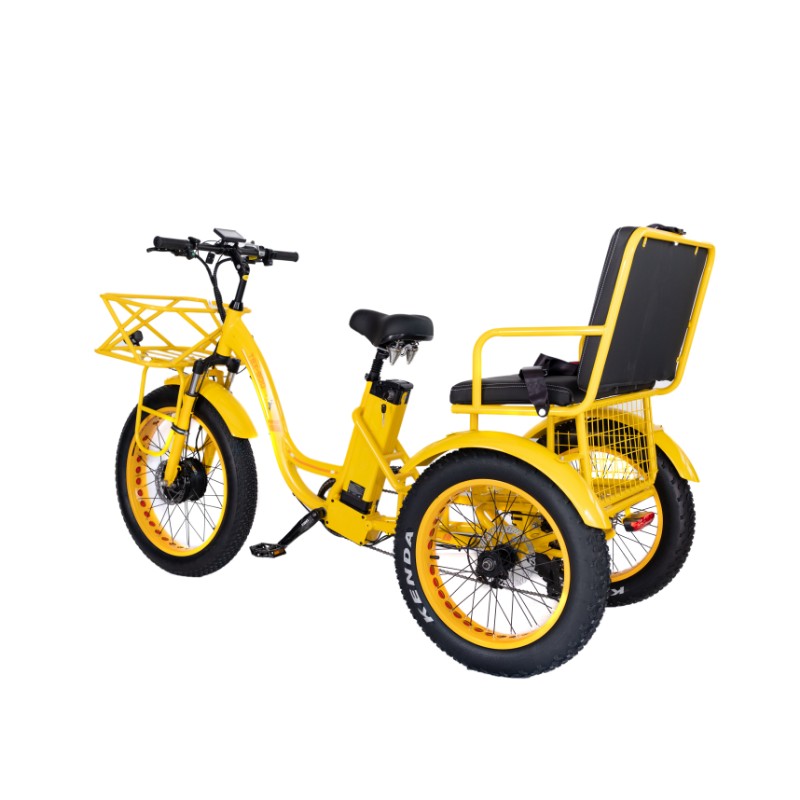

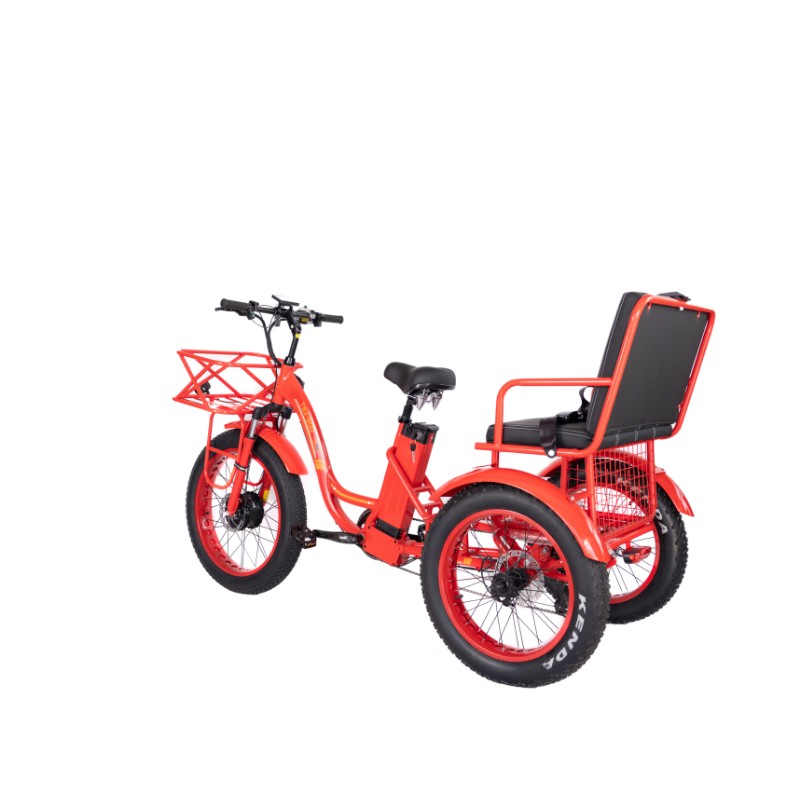

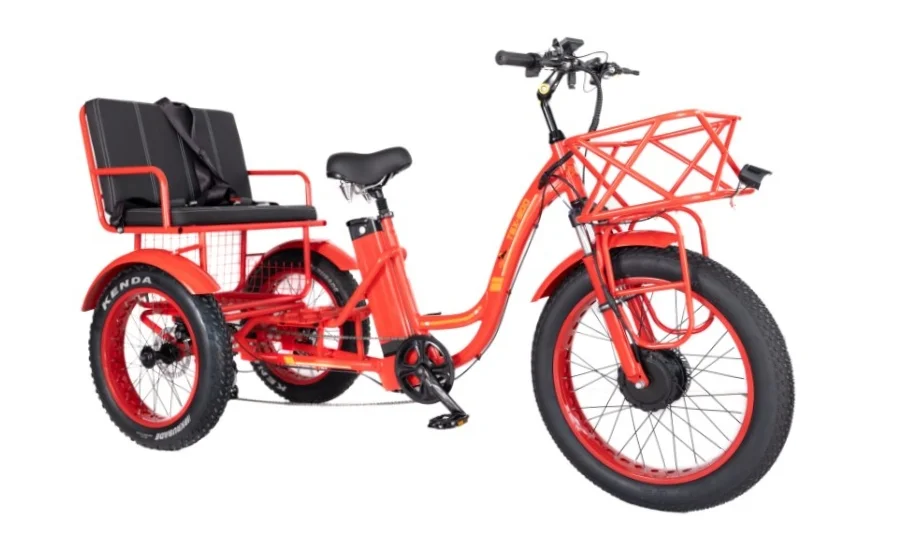

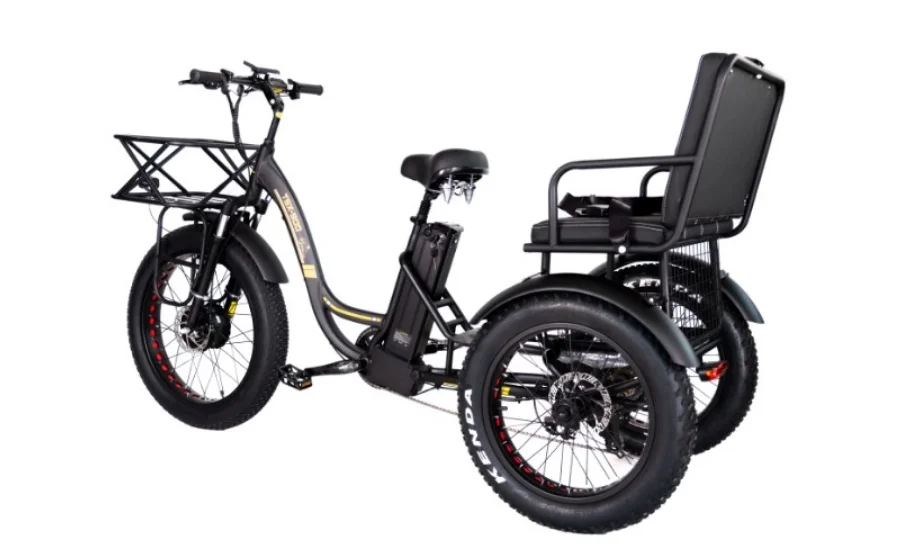

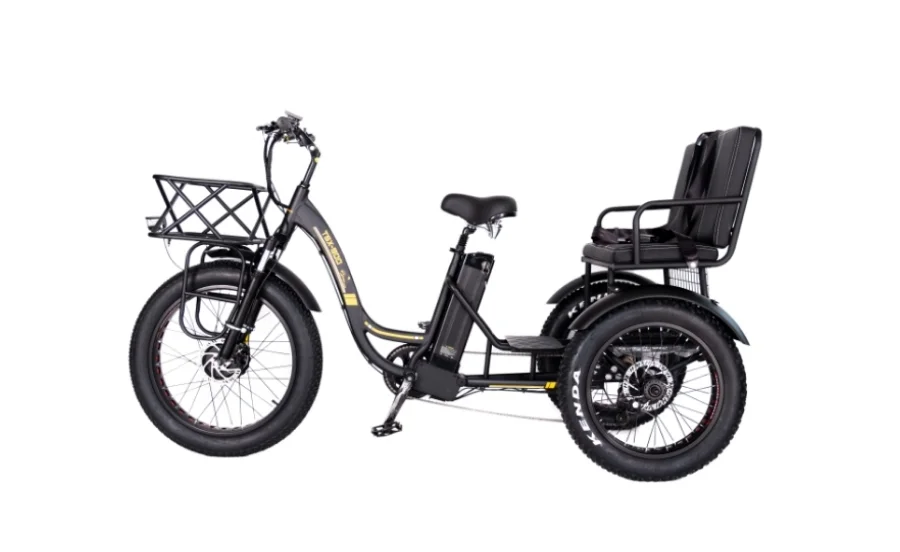

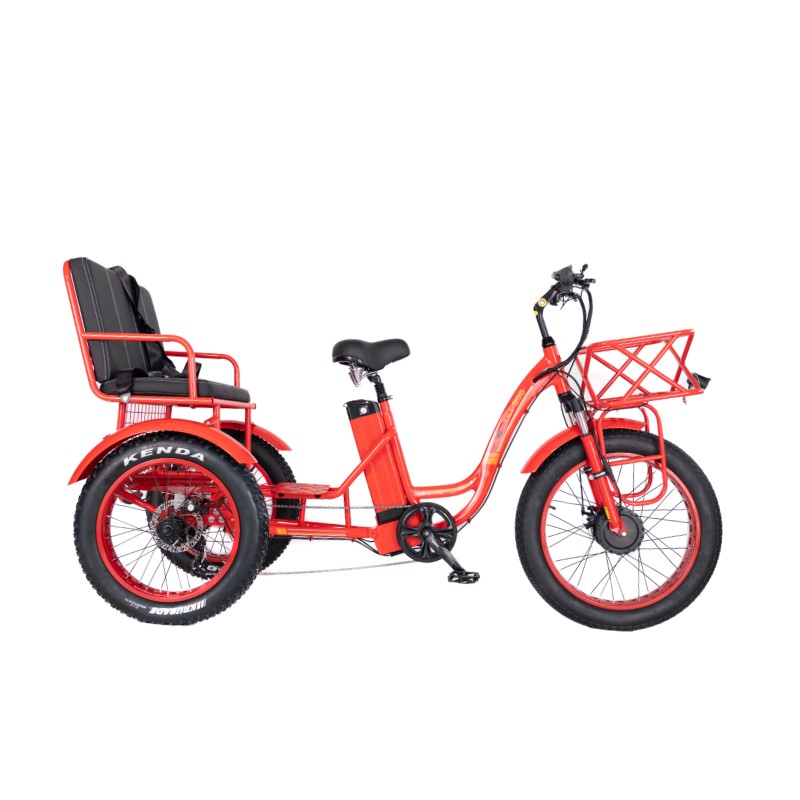

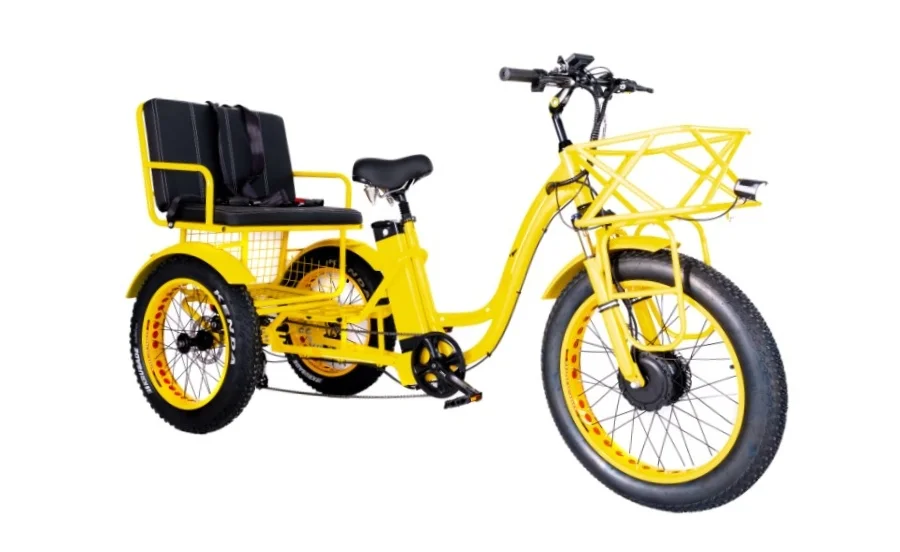

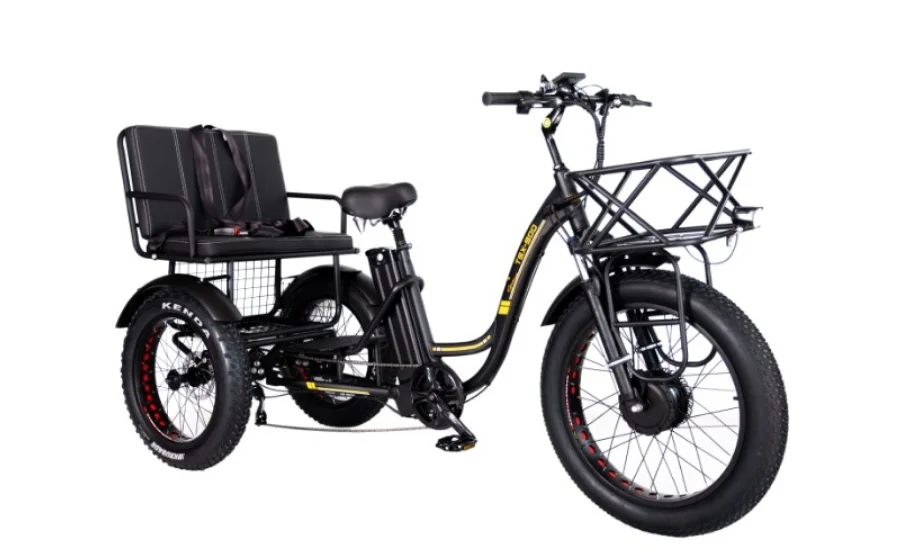

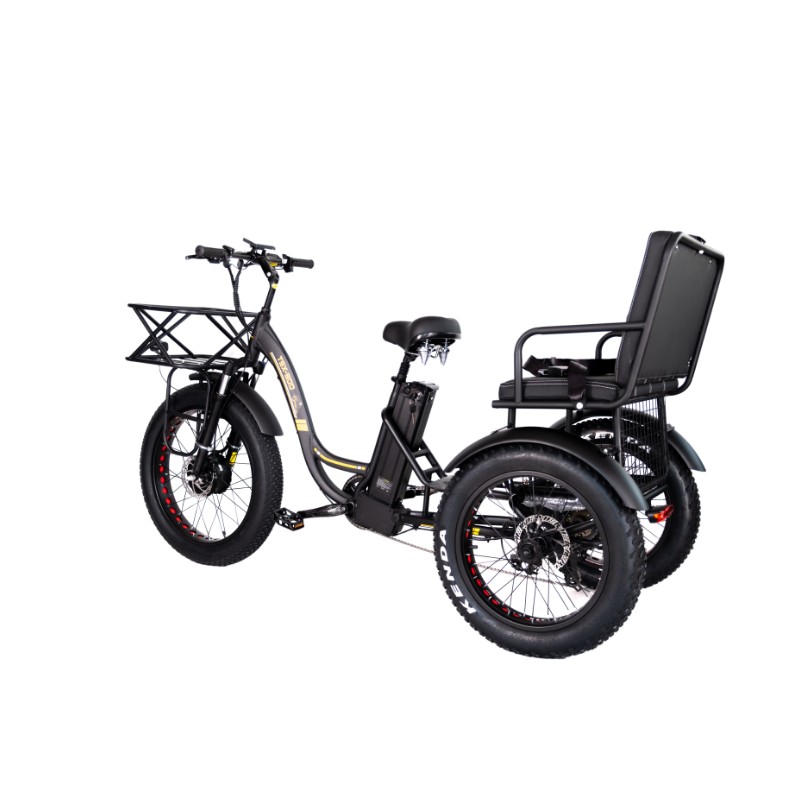

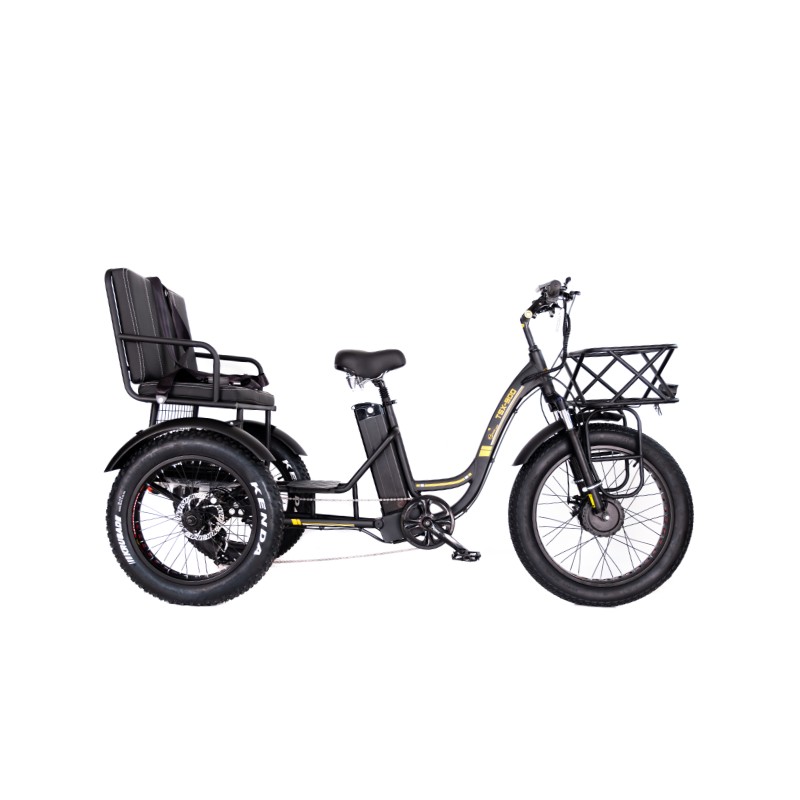

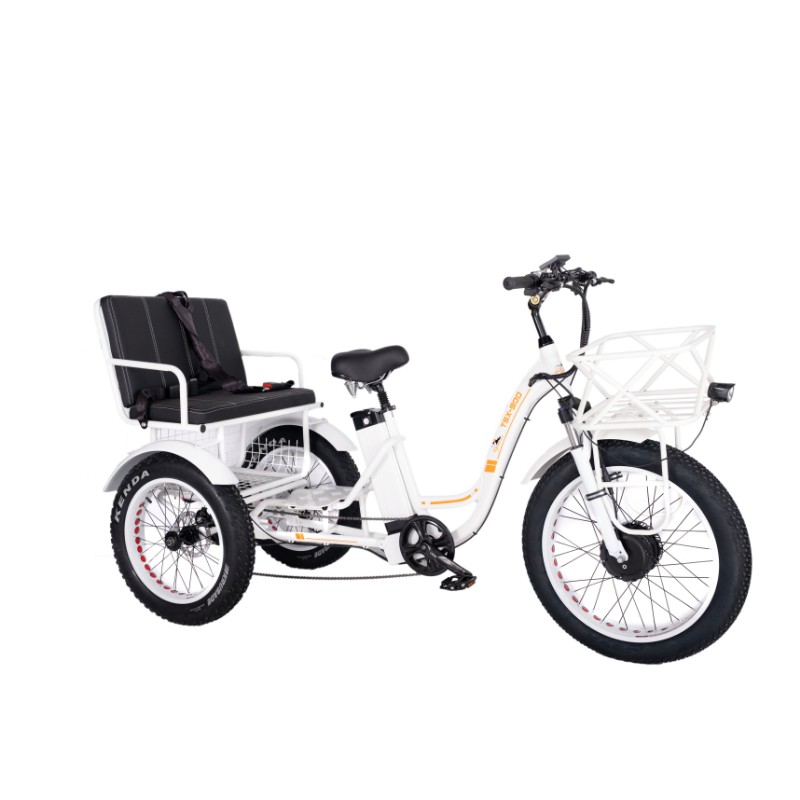

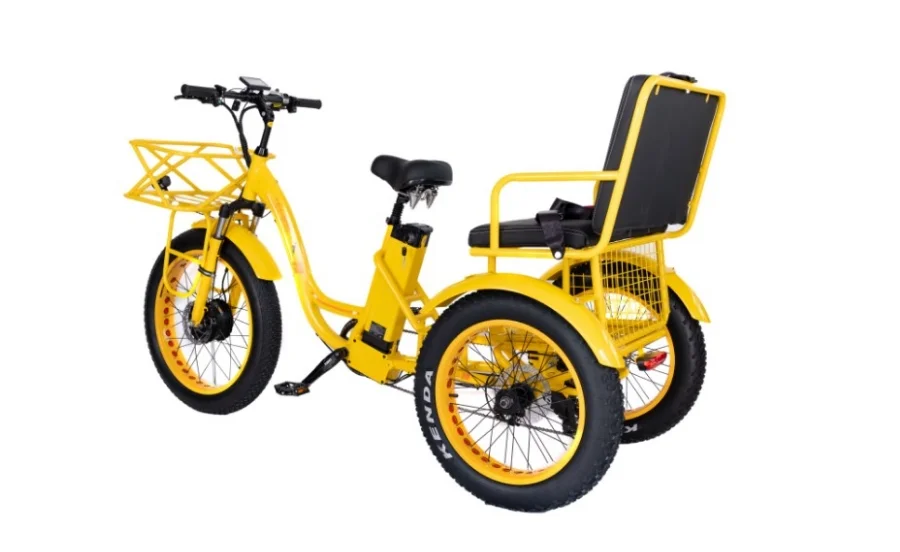

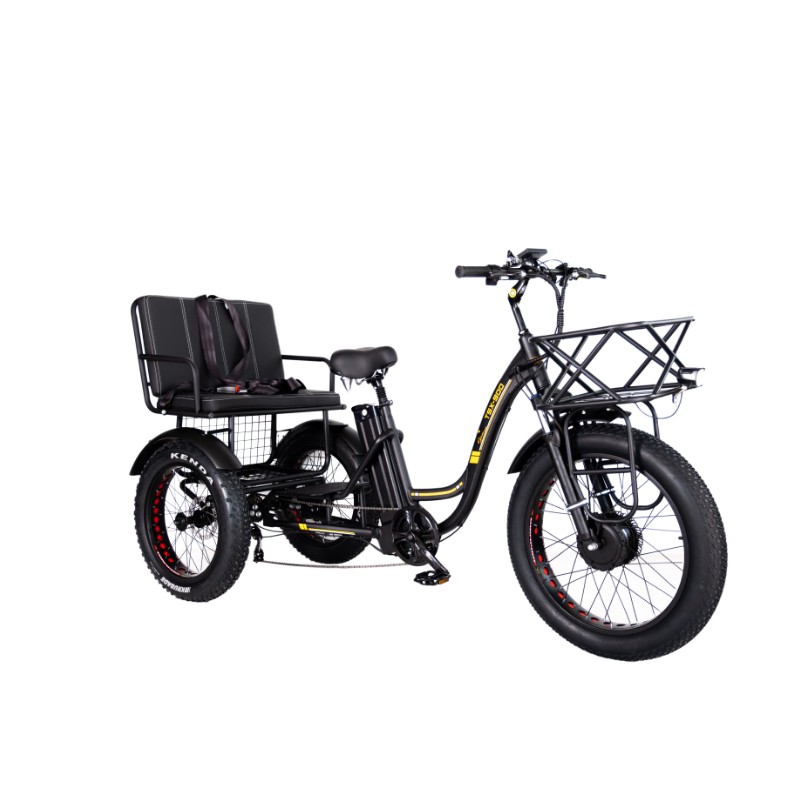

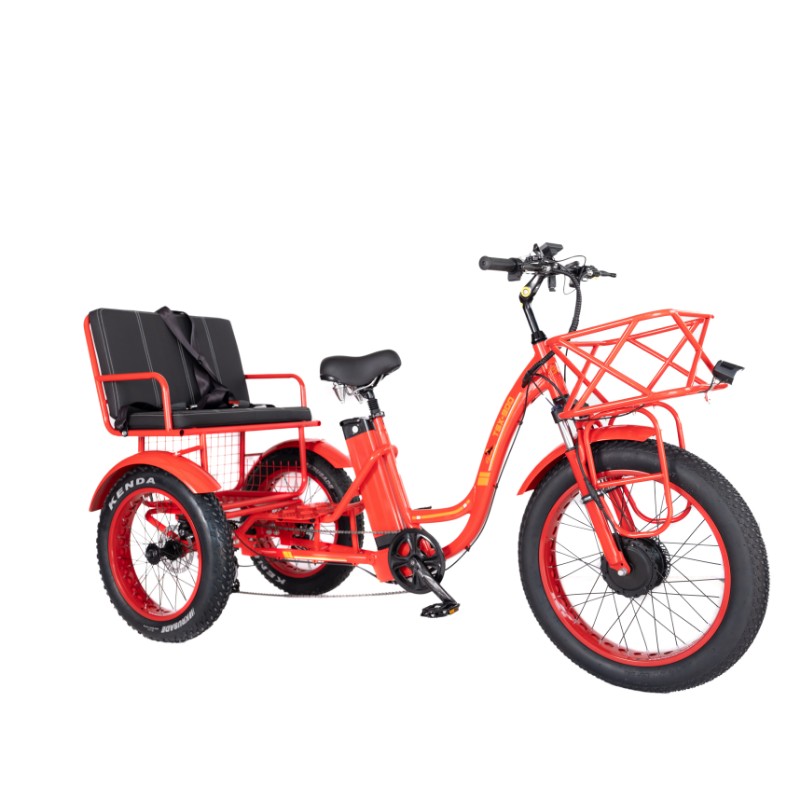

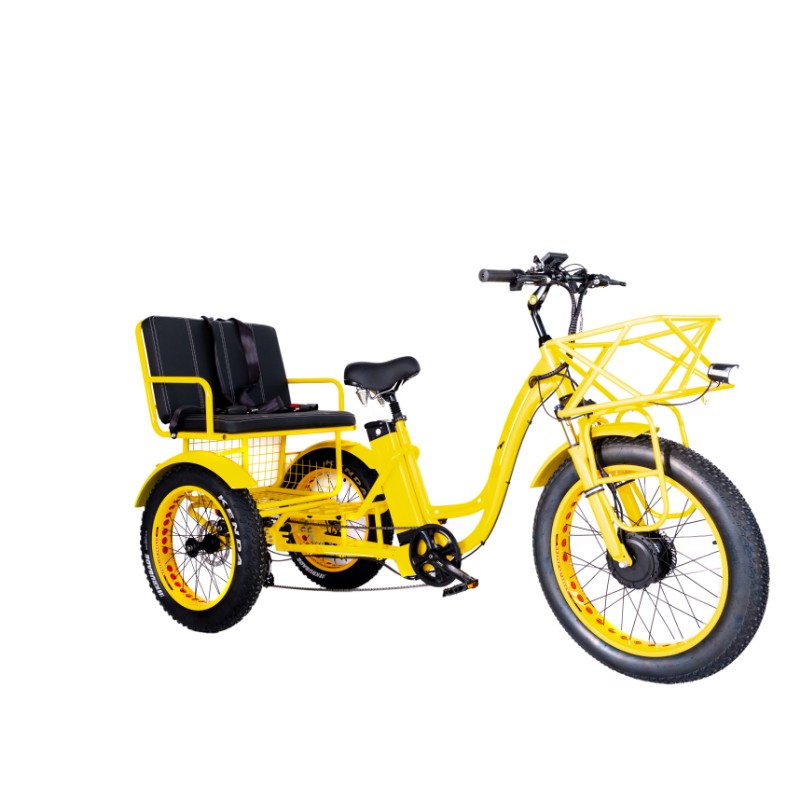

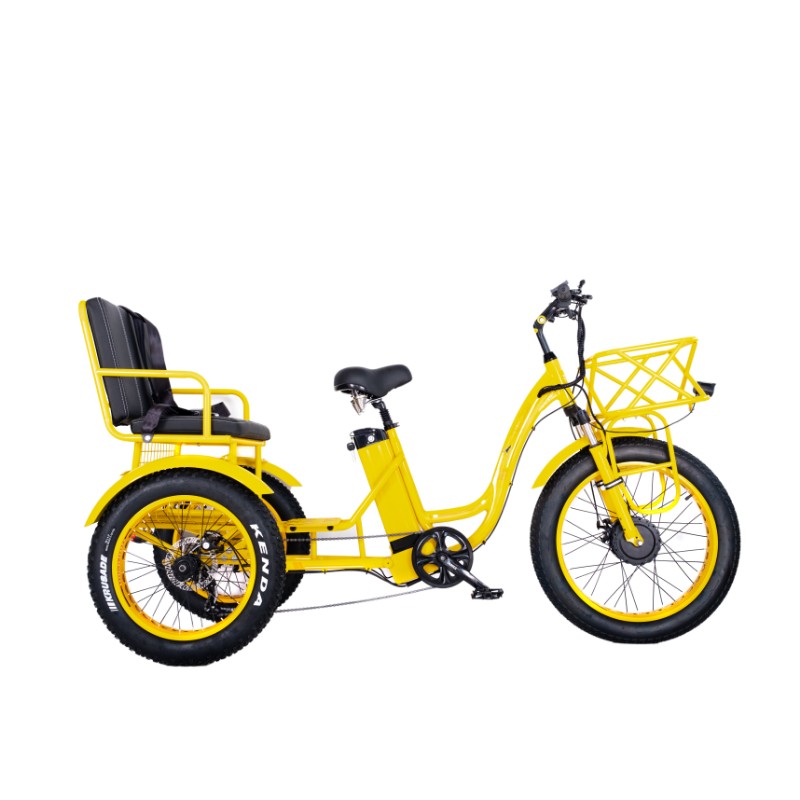

Frame Colors: Black, Red, Yellow, White
Rim Colors: Black, Red, Yellow, White

BIKE FEATURES

Fully Loaded Edition
Full Electric Range: Up to 51 Miles
Pedal Assist Range: Up to 57 Miles

Rickshaw weight 110 pounds



RIDER INFO

Adjustable Seat: perfect for any size rider.
Maximum Rider Weight: 400lbs
Designed for All Terrains



BATTERY

Battery: 48V*21AH Samsung Lithium Ion
Charge Time: 4-6 Hours
Battery Life Est: 1000 Charges



MOTOR

Motor: BaFang 750W Front Drive
Motor Power：Fixed Output Power : 750W
5 Power Levels
Quick Charger: US 110v Standard Smart Charger
Throttle Type : Variable Speed Control – 1/2 Thumb Throttle



ODOMETER

LCD Display
Features:

• Speedometer
• Battery Level
• Speed Setting Indicator
• Trip Distance



HARDWARE DETAILS

Frame: Aluminium-Alloy – heavy duty for off roading
Fork: Steel Tig Welding
Handlebar: Aluminum
Seat Post: Aluminum
Saddle Seat: Leather
Chain: Rust Resistant Chain
Pedals: Aluminum
Tire Front: Kenda 24” X 4.0” Fat Tire
Tire Back: Kenda 20” X 4.0” Fat Tire
Brakes: Alloy Aluminum Front and Rear Disc
Headlight: LED



EASY BIKE ASSEMBLY

Bike ships to you partially assembled. Easy step-by-step assembly instructions are included!

If you are not familiar with bike basics we recommend taking your pre-assembled bike to a local bike shop to be professionally assembled. All parts, including pre-installed components must be properly tightened and adjusted prior to riding. After a few rides it is normal that your bike will need some tuning.

Shipping Dimensions: 68x34x30 – 157lbs
